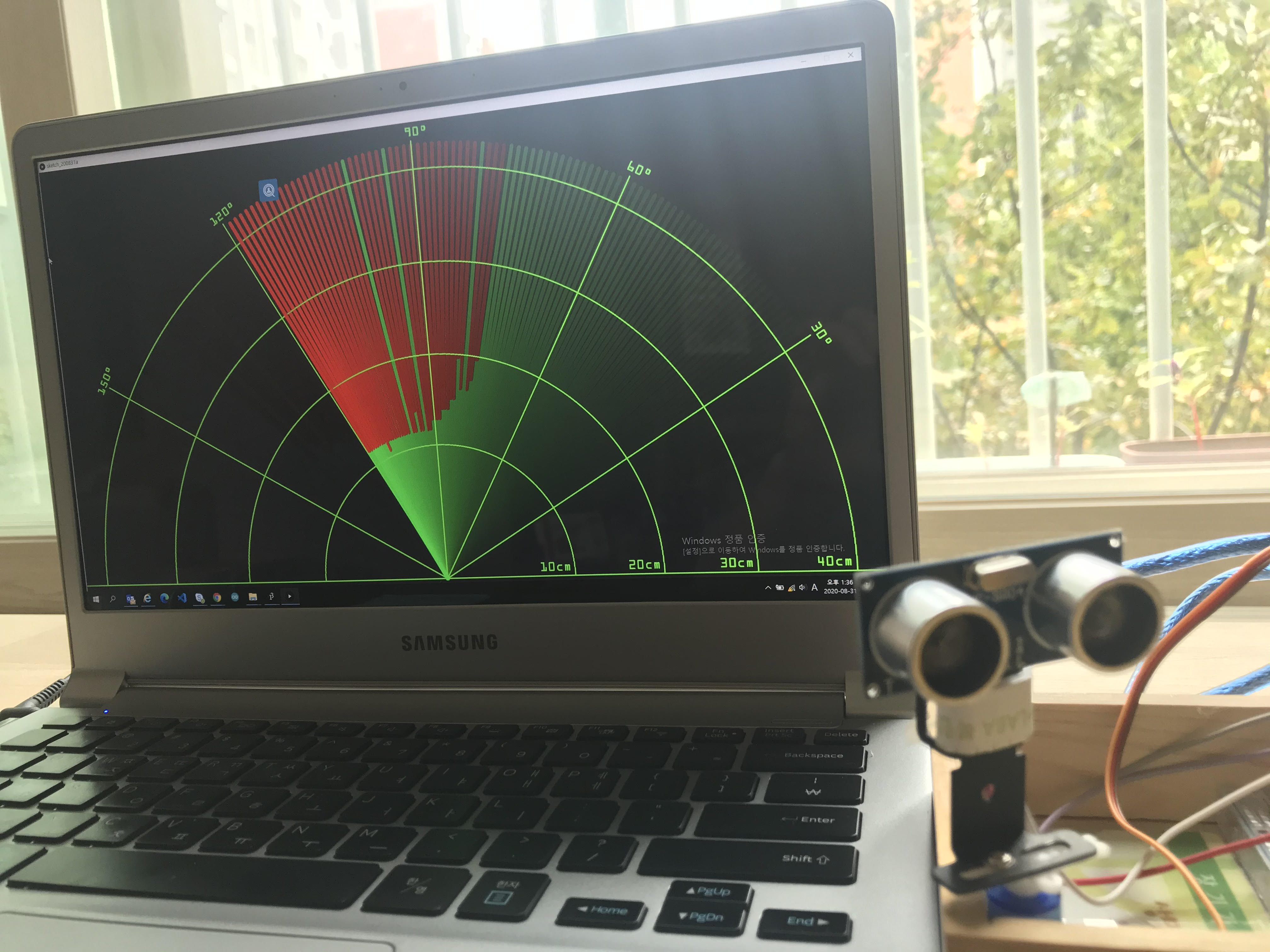

/*   Arduino Radar Project

*

*   Updated version. Fits any screen resolution!

*   Just change the values in the size() function,

*   with your screen resolution.

*

 *  by Dejan Nedelkovski,

 *  www.HowToMechatronics.com

*

 */

import processing.serial.*; // imports library for serial communication

import java.awt.event.KeyEvent; // imports library for reading the data from the serial port

import java.io.IOException;

Serial myPort; // defines Object Serial

// defubes variables

String angle="";

String distance="";

String data="";

String noObject;

float pixsDistance;

int iAngle, iDistance;

int index1=0;

int index2=0;

PFont orcFont;

void setup() {

 size (1920, 1080); // ***CHANGE THIS TO YOUR SCREEN RESOLUTION***

smooth();

myPort = new Serial(this,"COM3", 9600); // starts the serial communication

myPort.bufferUntil('.'); // reads the data from the serial port up to the character '.'. So actually it reads this: angle,distance.

orcFont = loadFont("OCRAExtended-30.vlw");

}

void draw() {

  fill(98,245,31);

  textFont(orcFont);

  // simulating motion blur and slow fade of the moving line

  noStroke();

  fill(0,4);

  rect(0, 0, width, height-height*0.065);

  fill(98,245,31); // green color

  // calls the functions for drawing the radar

  drawRadar();

  drawLine();

  drawObject();

  drawText();

}

void serialEvent (Serial myPort) { // starts reading data from the Serial Port

  // reads the data from the Serial Port up to the character '.' and puts it into the String variable "data".

  data = myPort.readStringUntil('.');

  data = data.substring(0,data.length()-1);

  index1 = data.indexOf(","); // find the character ',' and puts it into the variable "index1"

  angle= data.substring(0, index1); // read the data from position "0" to position of the variable index1 or thats the value of the angle the Arduino Board sent into the Serial Port

  distance= data.substring(index1+1, data.length()); // read the data from position "index1" to the end of the data pr thats the value of the distance

  // converts the String variables into Integer

  iAngle = int(angle);

  iDistance = int(distance);

}

void drawRadar() {

  pushMatrix();

  translate(width/2,height-height*0.074); // moves the starting coordinats to new location

  noFill();

  strokeWeight(2);

  stroke(98,245,31);

  // draws the arc lines

  arc(0,0,(width-width*0.0625),(width-width*0.0625),PI,TWO_PI);

  arc(0,0,(width-width*0.27),(width-width*0.27),PI,TWO_PI);

  arc(0,0,(width-width*0.479),(width-width*0.479),PI,TWO_PI);

  arc(0,0,(width-width*0.687),(width-width*0.687),PI,TWO_PI);

  // draws the angle lines

  line(-width/2,0,width/2,0);

  line(0,0,(-width/2)*cos(radians(30)),(-width/2)*sin(radians(30)));

  line(0,0,(-width/2)*cos(radians(60)),(-width/2)*sin(radians(60)));

  line(0,0,(-width/2)*cos(radians(90)),(-width/2)*sin(radians(90)));

  line(0,0,(-width/2)*cos(radians(120)),(-width/2)*sin(radians(120)));

  line(0,0,(-width/2)*cos(radians(150)),(-width/2)*sin(radians(150)));

  line((-width/2)*cos(radians(30)),0,width/2,0);

  popMatrix();

}

void drawObject() {

  pushMatrix();

  translate(width/2,height-height*0.074); // moves the starting coordinats to new location

  strokeWeight(9);

  stroke(255,10,10); // red color

  pixsDistance = iDistance*((height-height*0.1666)*0.025); // covers the distance from the sensor from cm to pixels

  // limiting the range to 40 cms

  if(iDistance<40){

    // draws the object according to the angle and the distance

  line(pixsDistance*cos(radians(iAngle)),-pixsDistance*sin(radians(iAngle)),(width-width*0.505)*cos(radians(iAngle)),-(width-width*0.505)*sin(radians(iAngle)));

  }

  popMatrix();

}

void drawLine() {

  pushMatrix();

  strokeWeight(9);

  stroke(30,250,60);

  translate(width/2,height-height*0.074); // moves the starting coordinats to new location

  line(0,0,(height-height*0.12)*cos(radians(iAngle)),-(height-height*0.12)*sin(radians(iAngle))); // draws the line according to the angle

  popMatrix();

}

void drawText() { // draws the texts on the screen

  pushMatrix();

  if(iDistance>40) {

  noObject = "Out of Range";

  }

  else {

  noObject = "In Range";

  }

  fill(0,0,0);

  noStroke();

  rect(0, height-height*0.0648, width, height);

  fill(98,245,31);

  textSize(25);

  text("10cm",width-width*0.3854,height-height*0.0833);

  text("20cm",width-width*0.281,height-height*0.0833);

  text("30cm",width-width*0.177,height-height*0.0833);

  text("40cm",width-width*0.0729,height-height*0.0833);

  textSize(40);

  text("Object: " + noObject, width-width*0.875, height-height*0.0277);

  text("Angle: " + iAngle +" °", width-width*0.48, height-height*0.0277);

  text("Distance: ", width-width*0.26, height-height*0.0277);

  if(iDistance<40) {

  text("        " + iDistance +" cm", width-width*0.225, height-height*0.0277);

  }

  textSize(25);

  fill(98,245,60);

  translate((width-width*0.4994)+width/2*cos(radians(30)),(height-height*0.0907)-width/2*sin(radians(30)));

  rotate(-radians(-60));

  text("30°",0,0);

  resetMatrix();

  translate((width-width*0.503)+width/2*cos(radians(60)),(height-height*0.0888)-width/2*sin(radians(60)));

  rotate(-radians(-30));

  text("60°",0,0);

  resetMatrix();

  translate((width-width*0.507)+width/2*cos(radians(90)),(height-height*0.0833)-width/2*sin(radians(90)));

  rotate(radians(0));

  text("90°",0,0);

  resetMatrix();

  translate(width-width*0.513+width/2*cos(radians(120)),(height-height*0.07129)-width/2*sin(radians(120)));

  rotate(radians(-30));

  text("120°",0,0);

  resetMatrix();

  translate((width-width*0.5104)+width/2*cos(radians(150)),(height-height*0.0574)-width/2*sin(radians(150)));

  rotate(radians(-60));

  text("150°",0,0);

  popMatrix();

}

// Includes the Servo library

#include <Servo.h>

// Defines Tirg and Echo pins of the Ultrasonic Sensor

const int trigPin = 10;

const int echoPin = 11;

// Variables for the duration and the distance

long duration;

int distance;

Servo myServo; // Creates a servo object for controlling the servo motor

void setup() {

  pinMode(trigPin, OUTPUT); // Sets the trigPin as an Output

  pinMode(echoPin, INPUT); // Sets the echoPin as an Input

  Serial.begin(9600);

  myServo.attach(12); // Defines on which pin is the servo motor attached

}

void loop() {

  // rotates the servo motor from 15 to 165 degrees

  for(int i=15;i<=165;i++){

  myServo.write(i);

  delay(30);

  distance = calculateDistance();// Calls a function for calculating the distance measured by the Ultrasonic sensor for each degree

  Serial.print(i); // Sends the current degree into the Serial Port

  Serial.print(","); // Sends addition character right next to the previous value needed later in the Processing IDE for indexing

  Serial.print(distance); // Sends the distance value into the Serial Port

  Serial.print("."); // Sends addition character right next to the previous value needed later in the Processing IDE for indexing

  }

  // Repeats the previous lines from 165 to 15 degrees

  for(int i=165;i>15;i--){

  myServo.write(i);

  delay(30);

  distance = calculateDistance();

  Serial.print(i);

  Serial.print(",");

  Serial.print(distance);

  Serial.print(".");

  }

}

// Function for calculating the distance measured by the Ultrasonic sensor

int calculateDistance(){

  digitalWrite(trigPin, LOW);

  delayMicroseconds(2);

  // Sets the trigPin on HIGH state for 10 micro seconds

  digitalWrite(trigPin, HIGH);

  delayMicroseconds(10);

  digitalWrite(trigPin, LOW);

  duration = pulseIn(echoPin, HIGH); // Reads the echoPin, returns the sound wave travel time in microseconds

  distance= duration*0.034/2;

  return distance;

}
